DEKO HG
- Max Height (mm)
- N/A
- Thickness (mm)
- 70-74
- Acoustics (dB)
- Up to 55
- Fire Rating
- Up to REI60
- Structure
- Up to 5 KN/m^2
- Weight (Kg/m^2)
- 175-185
- Blinds
- N/A
- Manifestation
- N/A
Fire-classified floor glass
DEKO HG Fire floor glass adds an exclusive design feature to any room or circulation space - enabling daylight to flow between floor plates. HG Fire is supporting, fire proof, glass flooring comprising glazed modules made of multiple layers of glass incorporated into a supporting, fire proof, steel frame structure. This supports the weight of the actual floor, the load on the floor and provides certified fire properties. The edges of each glass panel there are graphics which conceal the steel structure.
-
PANEL SIZE
Each glazed panel is available in various configurations of 2 m². Multiple panels create an attractive sequence.
-
FIRE AND SOUND PROPERTIES
Certified to both REI30 and REI60, DEKO HG Fire glass provides an impressive sound reduction up to 55 dB.
-
FIREPROOF STEEL STRUCTURE
Glazed modules are supported by a fireproof steel structure in L and T shaped profiles. In addition to its own weight, the actual HG Fire glazed structure can cope with a maximum load of up to 5 kN/m2.

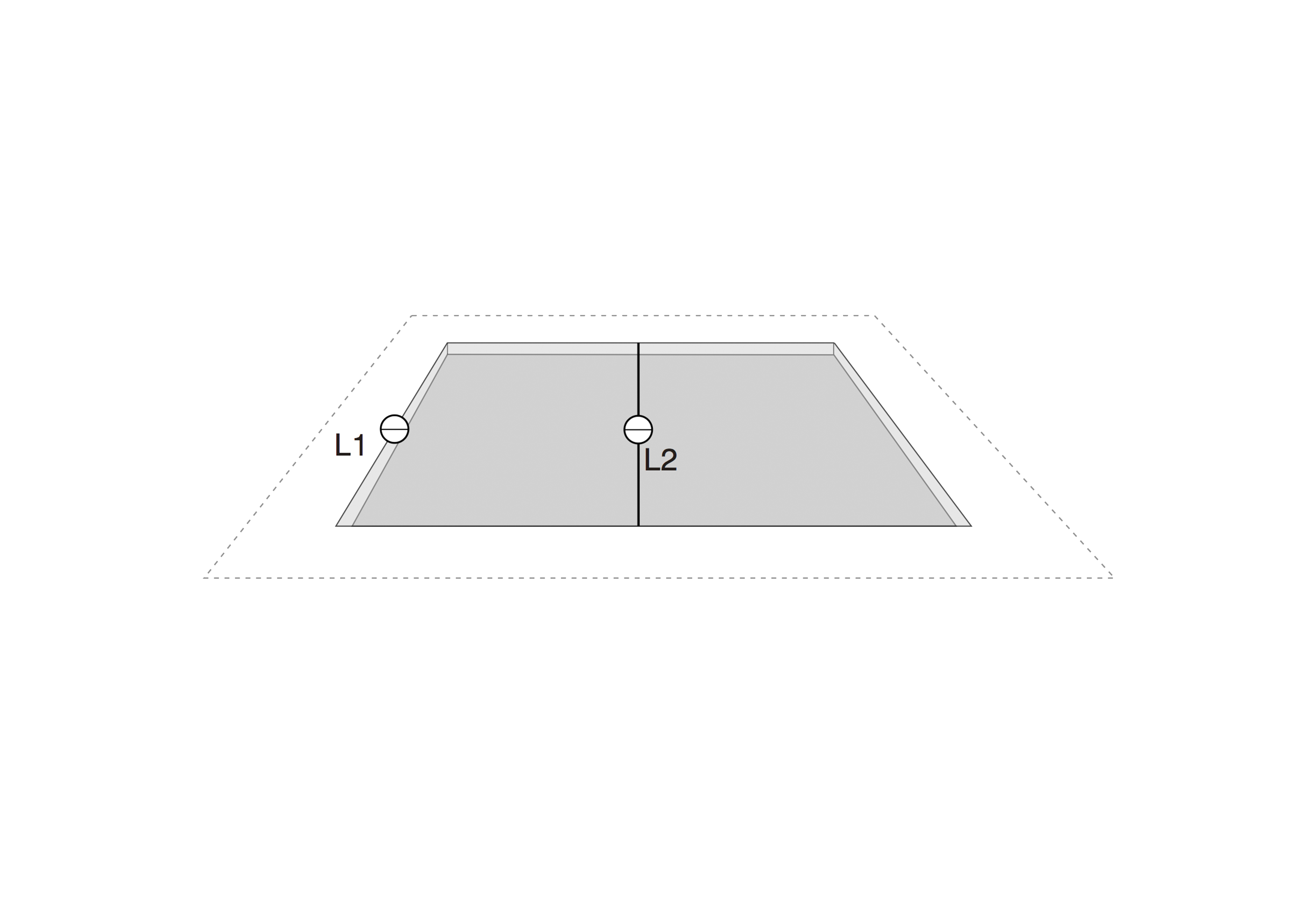

Detail of Deko HG
To place an order or make an enquiry
| PRODUCT TYPE | SOUND INSULATION | FIRE RESISTANCE | |
|---|---|---|---|
| HG Fire | 55 dB | REI 30 | View Details |
| HG Fire | 55 dB | REI 60 | View Details |
